Display averages (and other calculated measures) in a Heatmap Crosstab

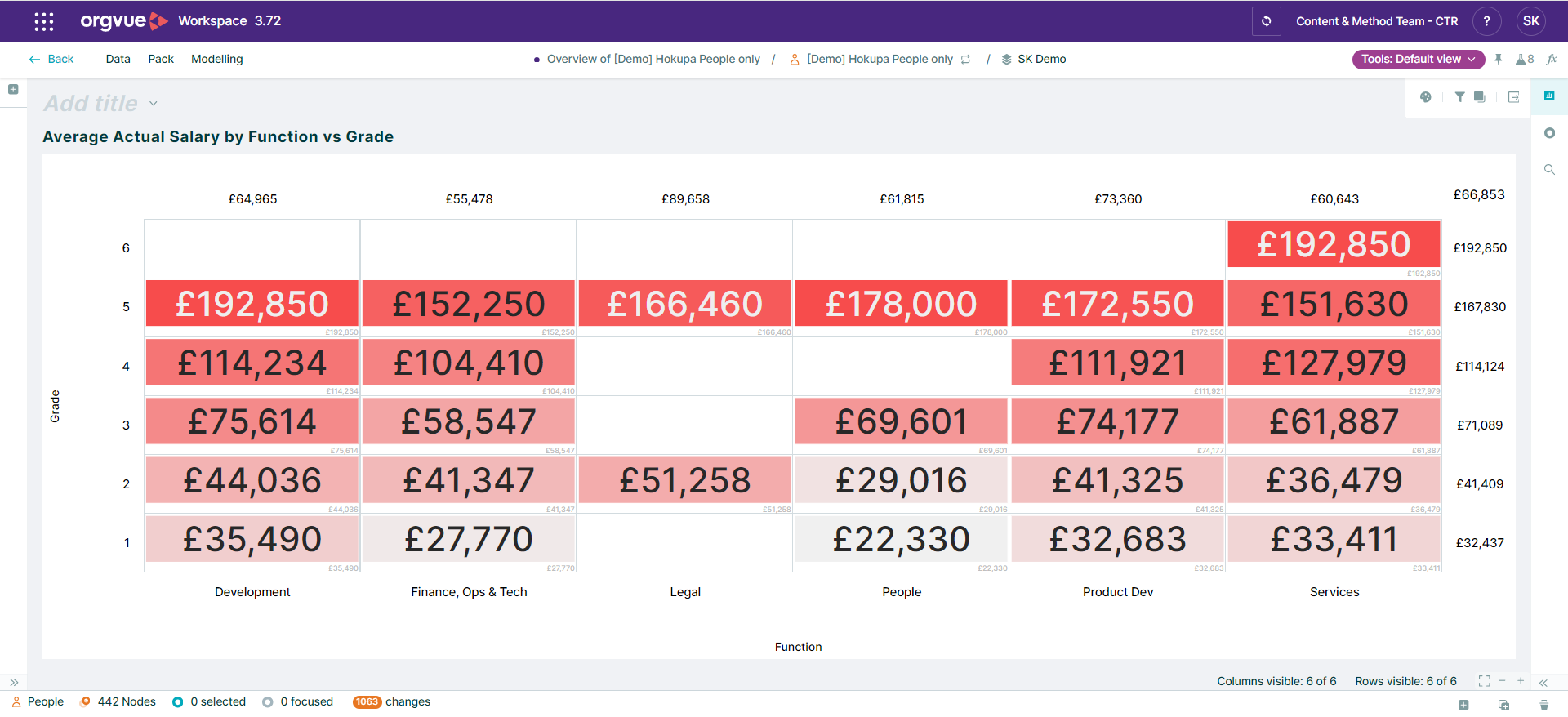

This article provides a step-by-step guide to create a Crosstab slide with heat-mapped cells displaying average values.

In this example, the average salary value for each function and each Grade level is shown.

The explanation assumes you know how to add a slide and specify the Crosstab slide type (see Analyze and visualize across multiple categories with Crosstabs).

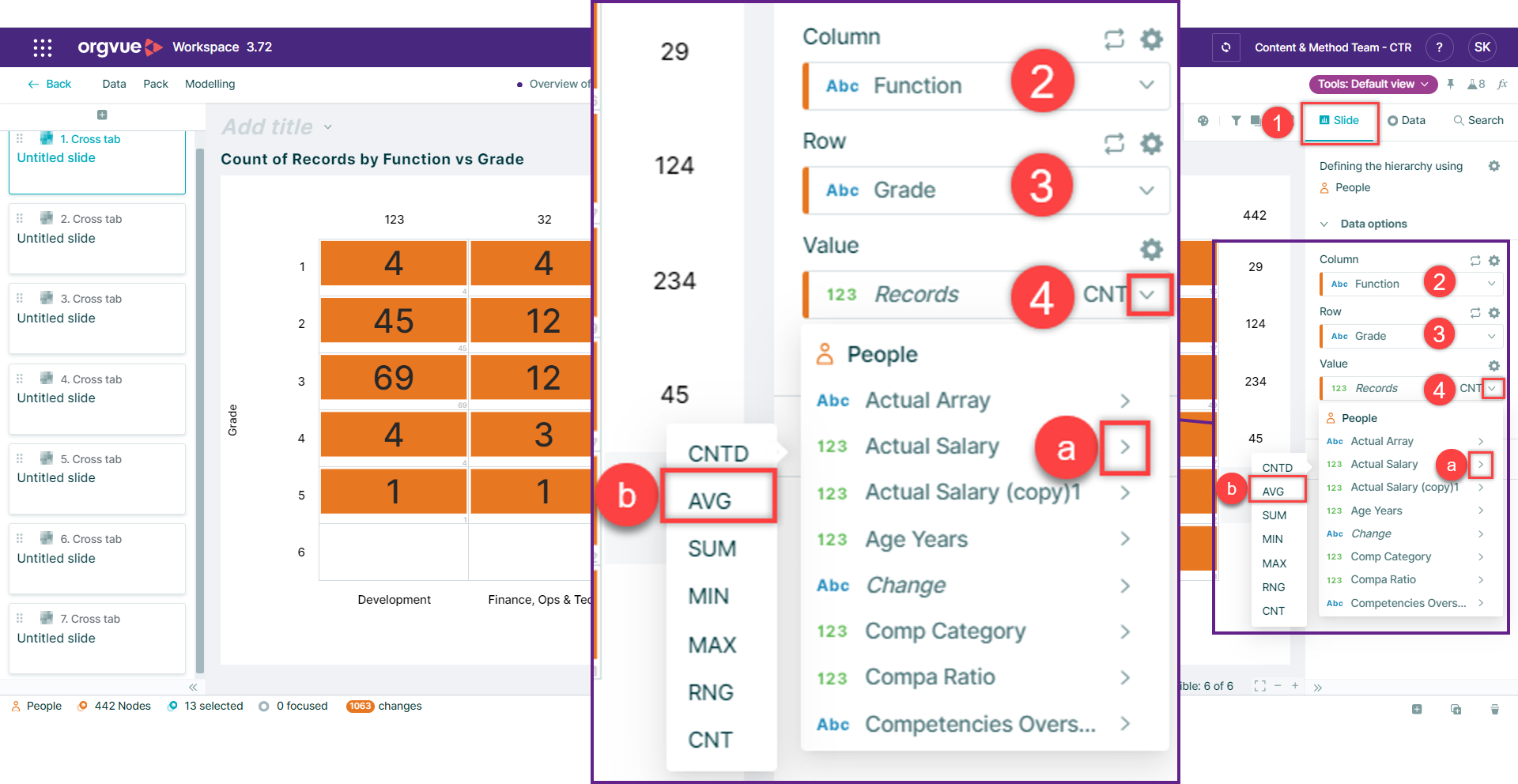

1. Ensure the Slide pane is selected
2. Select the property with the subgroup categories required for your Columns (in this example, Function is selected)
3. Select the property with the subgroup categories required for your Rows (in this example, Grade is selected)
4. By default, the count of Records is selected for the Values.
   1. Select the ‘>’ icon for the property which will define your cell values. In this example, Actual Salary is used
   2. Select the calculation required. In this example, ‘AVG’ for average is selected. A list of the other calculation options is provided at the end of this article.

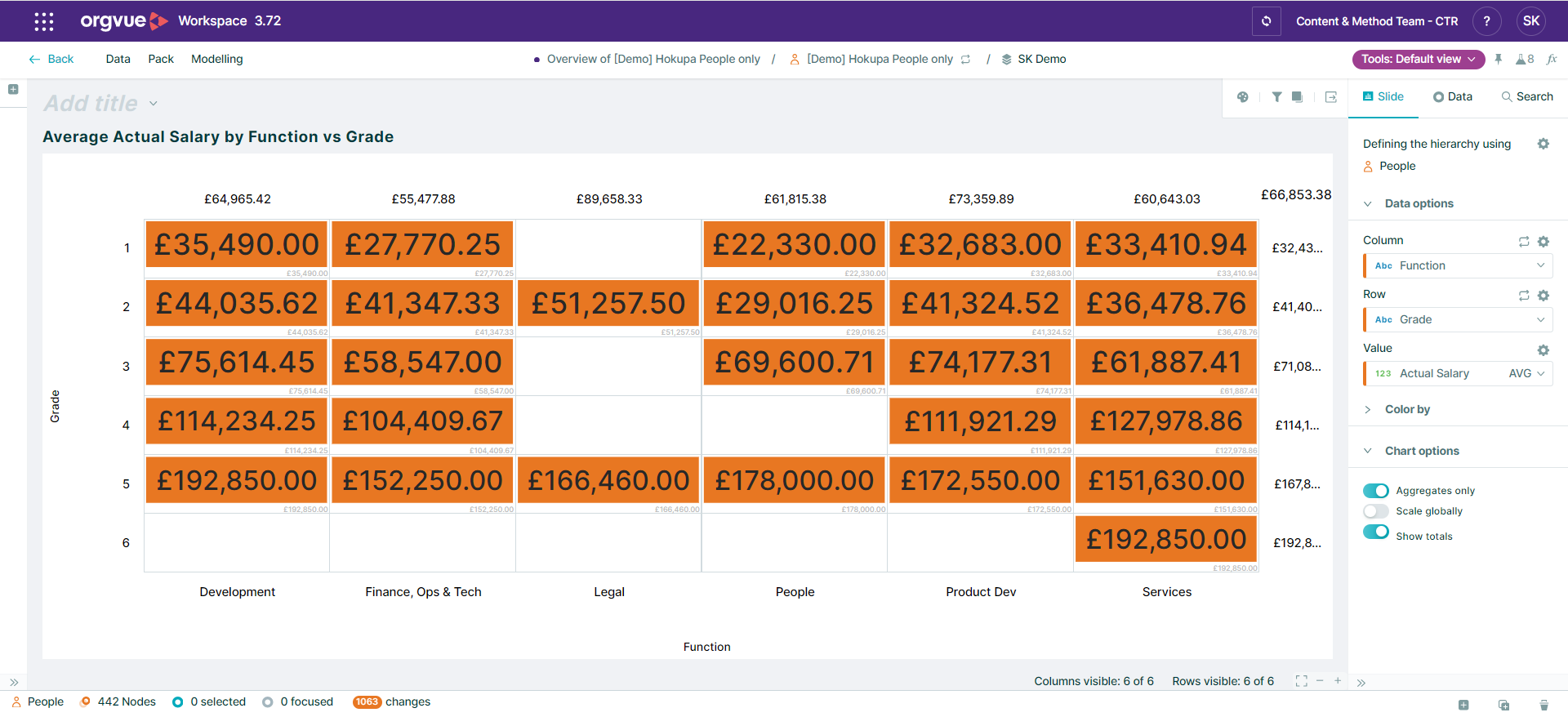

In this example, as shown above:

• The values are shown to two decimal places. This is an unhelpful level of detail. The value format is determined through Settings, see How to change the format of values
• The Row order needs to be reversed to present grade levels in descending order, with the most senior level presented at the top

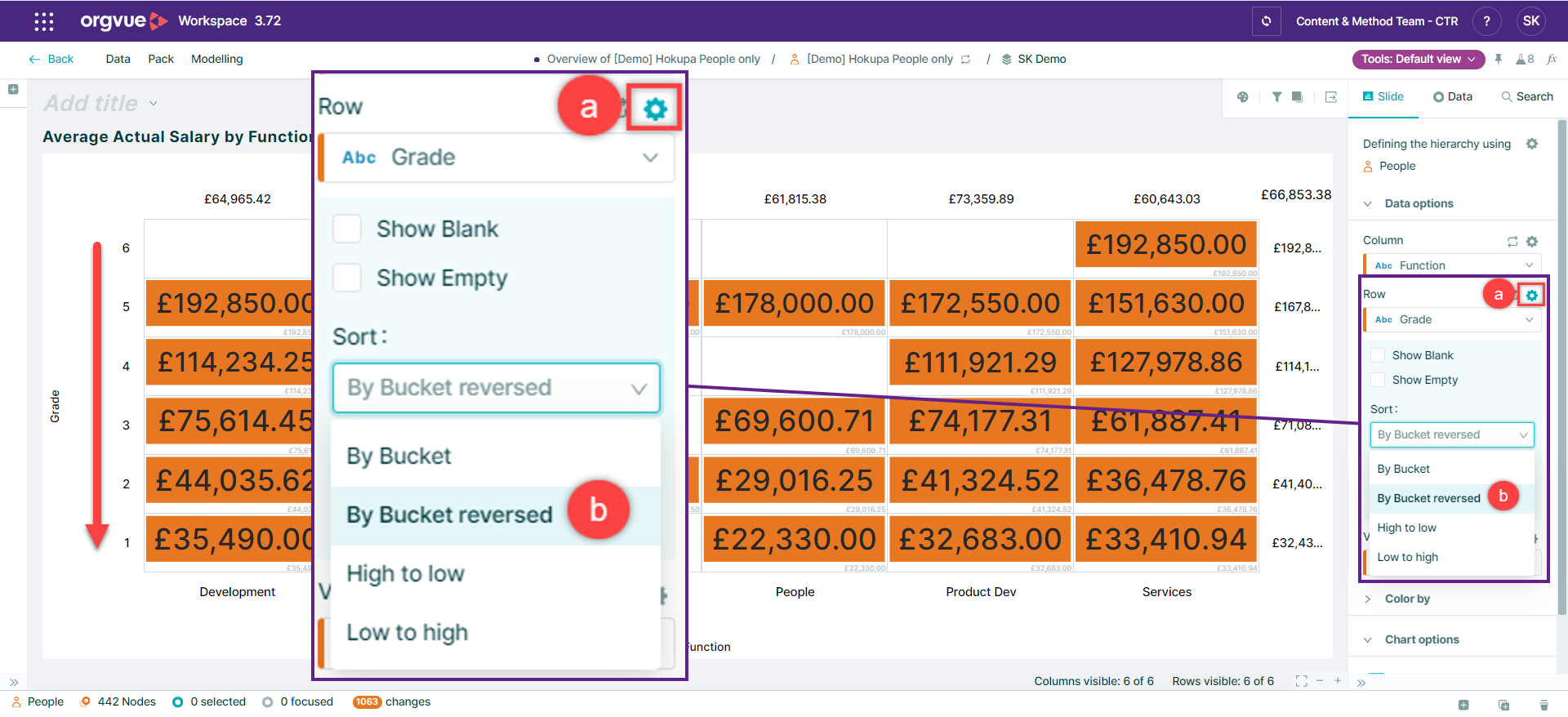

1. Select the cog for the Row setting
2. Specify the “By Bucket reversed” option

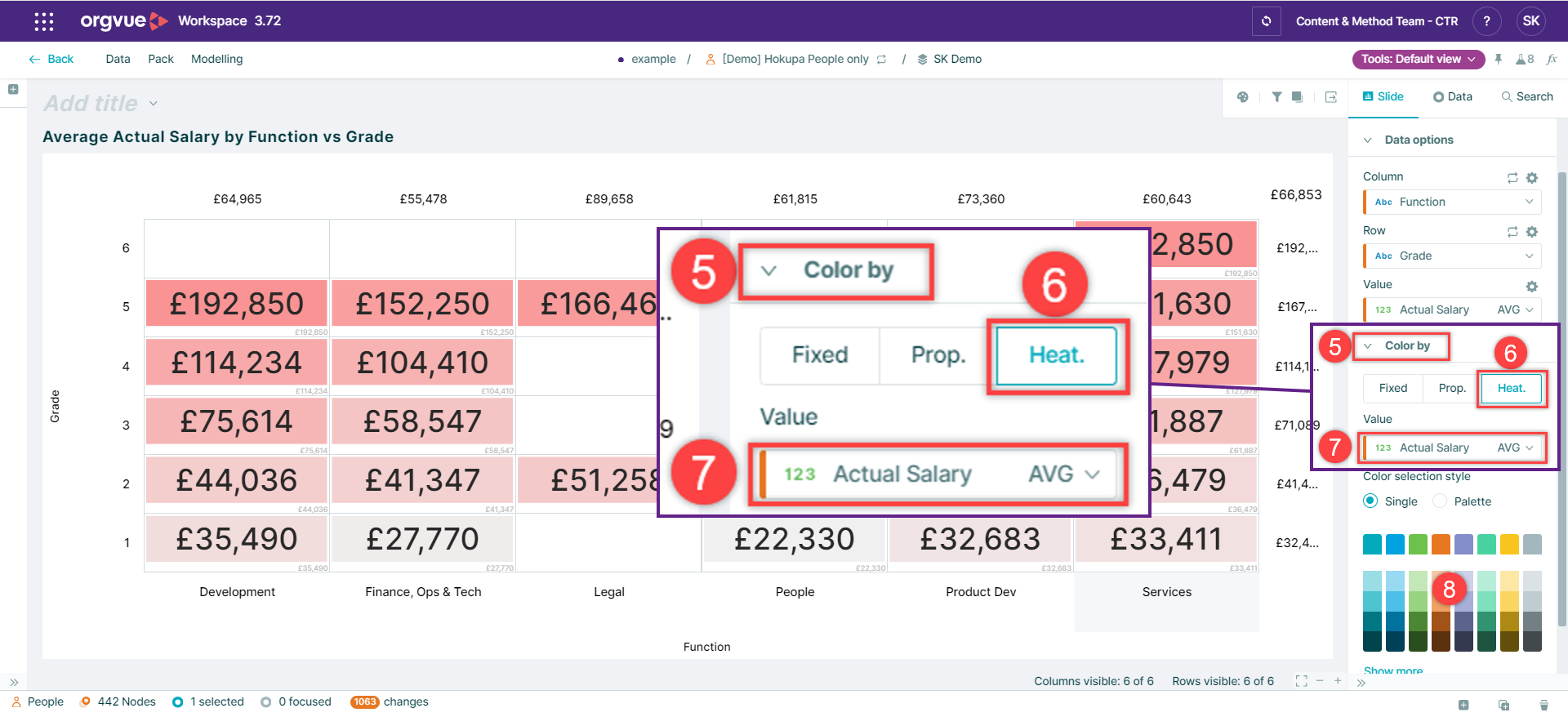

Specify the heatmap option:

5. Expand the ‘Color by’ options with the down arrow
6. Select “Heat.”
7. Select the property and the calculation to be used (Actual Salary and AVG in this example)

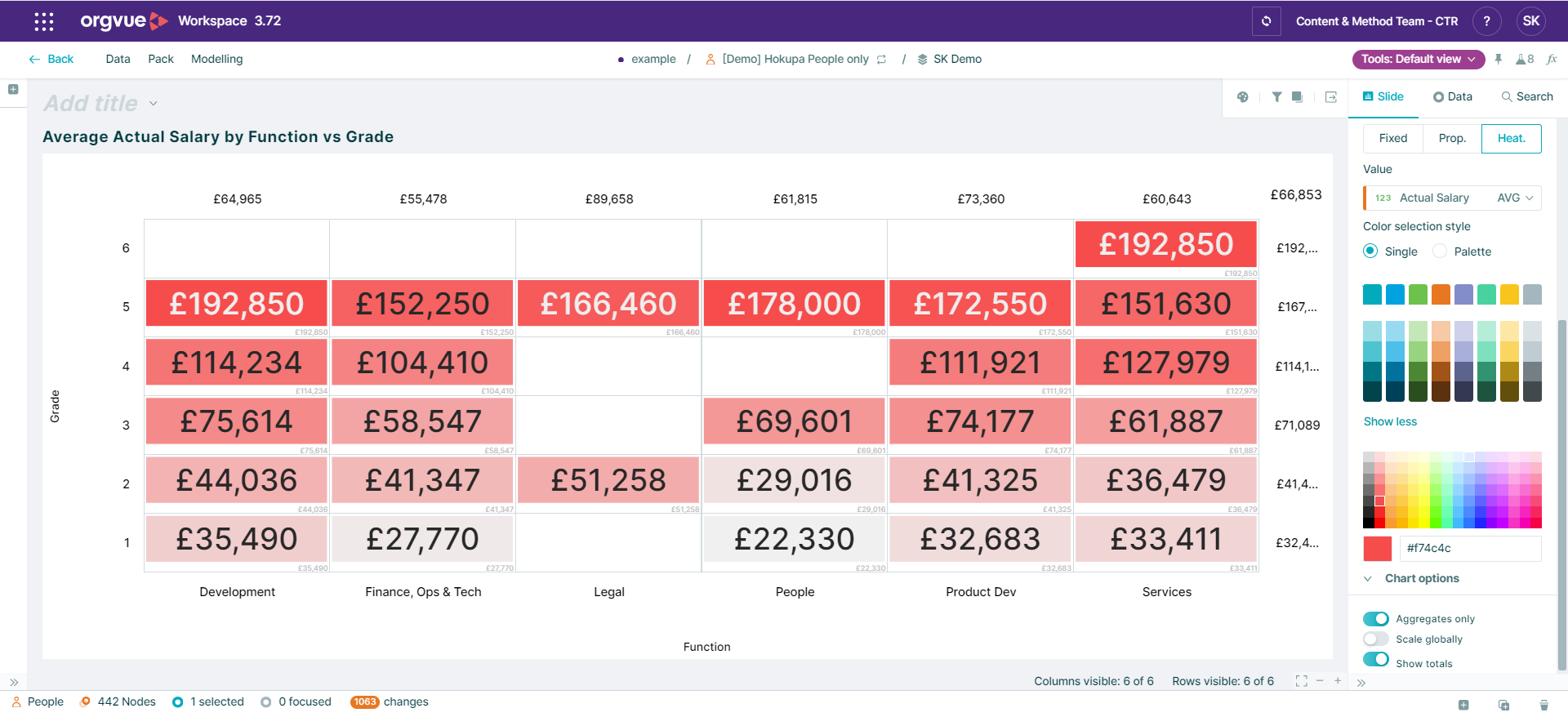

8. Select your preferred color

Note:
At step 4b, above, ‘AVG’ was selected to display the average values, other options may be required depending on the analysis being conducted. The options are:

• CNTD (Count Distinct):  the number of distinct (unique) property values
• SUM:  the total of all values when a number property has been selected
• MIN:  the lowest value when a number property has been selected
• MAX:  the highest value when a number property has been selected
• RNG (Range) the difference between the MIN value and the Max value
• CNT (Count): the number of nodes with non-blank property values
