Pack description
The Spans & Layers Intro Pack provides insight to analyse structural effectiveness and efficiency.
This pack provides the fastest route to insight because there is no need to map dataset properties for sub-group reporting, or specify targets. An overview of the pack content is provided in Spans and Layers Intro Pack: Slide-by-Slide.
Two additional Spans & Layers packs provide enhanced insight:
- The Spans & Layers Story Pack enables comparisons across organizational subgroups (e.g., across functional departments, geographic locations, and/ or business units).
- Spans & Layers Targets Pack enables comparisons across organizational subgroups, and identifies where the organization structure deviates from your specified targets.
Dataset requirements
The pack can be opened with any People or Positions dataset. No specific properties are required.
Insight provided
With this pack you can address questions such as:
- What is the split of people managers and non-managers across the organization?
- What is the average span of control across the organization as a whole?
- For each leader’s full reporting line
- For each individual people manager
- How many layers does the organization extend to?
- How many positions are there at each layer of the organization
- In which leadership reporting lines are there extended hierarchical layers?
- Are there opportunities for efficiency gains through the consolidation of small teams?
- How many one-to-one reporting relationships and micro teams are there across the organization
- Where are these in the structure?
- Which managers have narrow spans of control?
- Is there a need to rebalance people management responsibilities?
- How many managers have excessively high spans of control?
- Where are these in the structure?
- Which managers have excessively broad spans of control?
- What is the average span of control at each layer of the organization?
Illustrative content

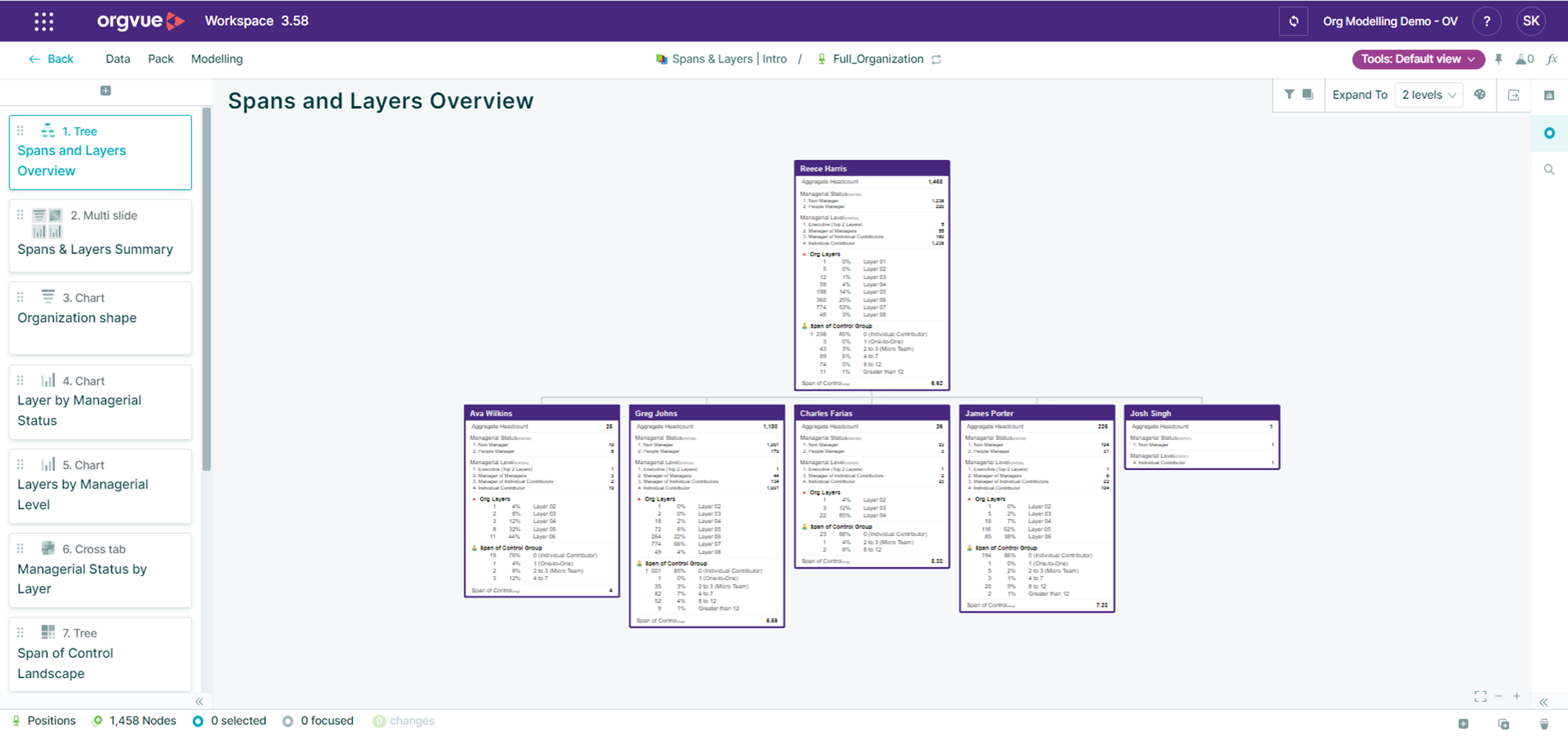

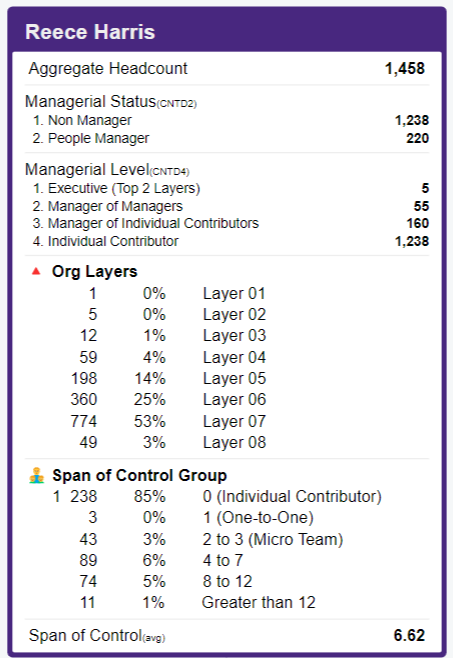

Drill-down through the hierarchy to see key spans and layers measures

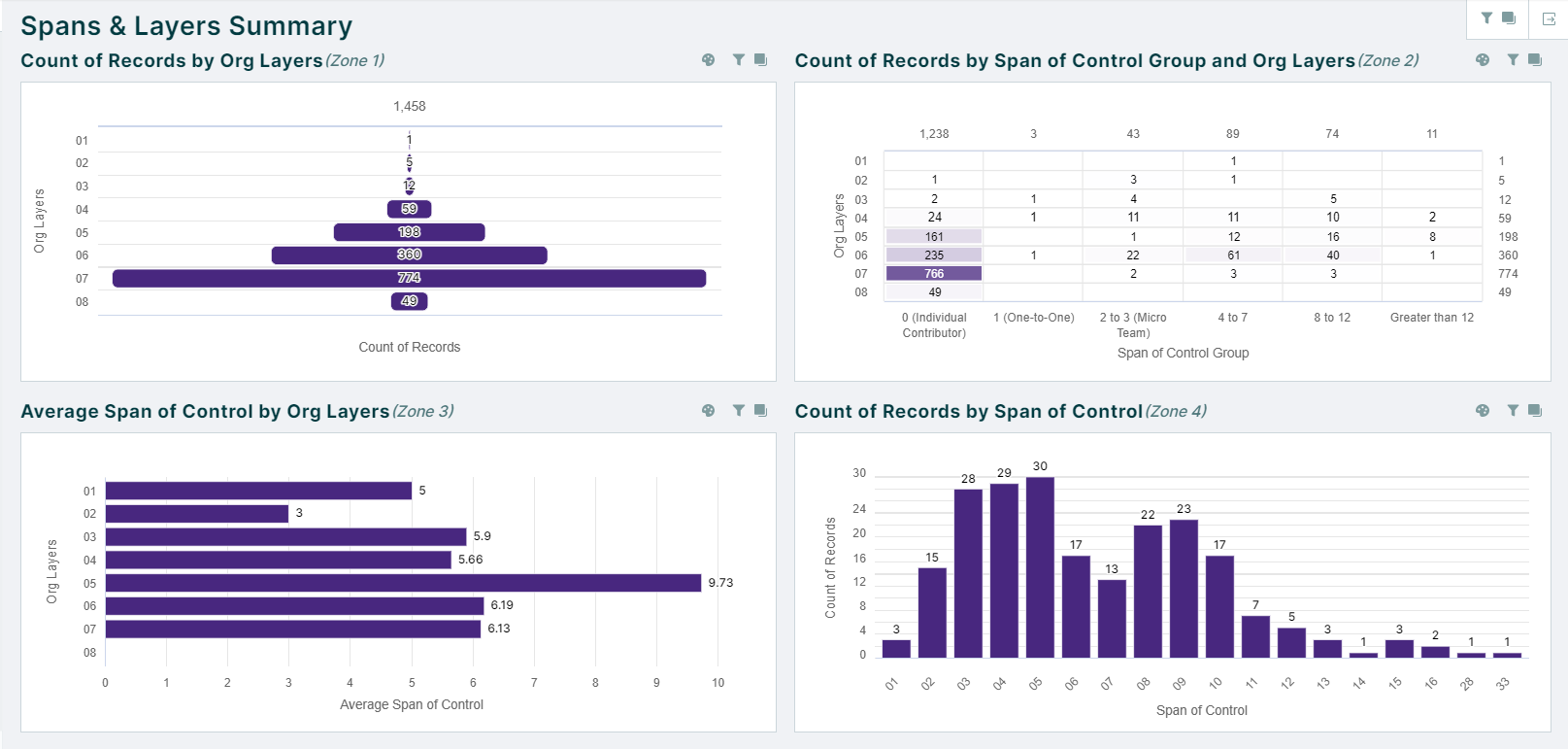

Visualize a dashboard of key spans and layers measures

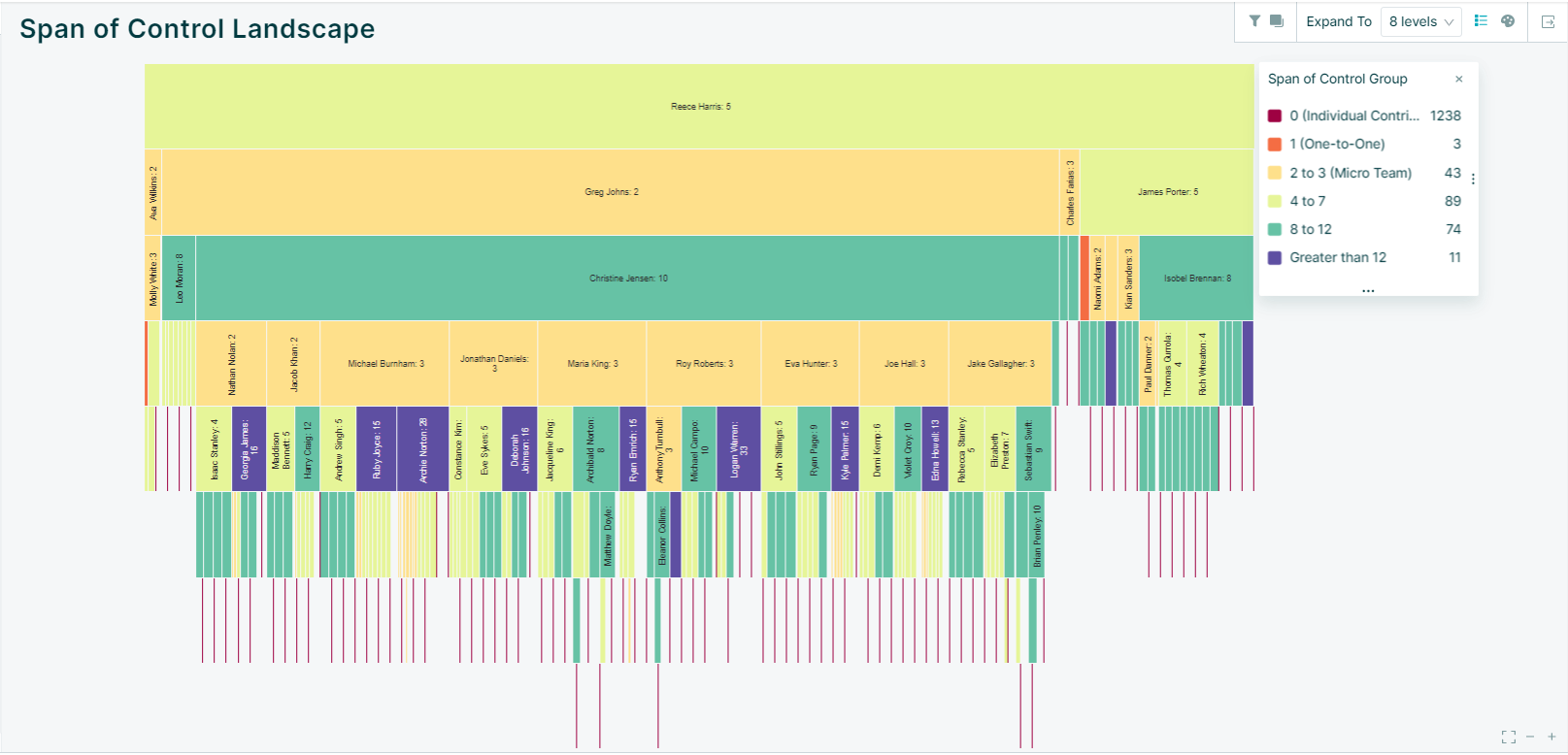

Visualize the Spans Landscape of the organization

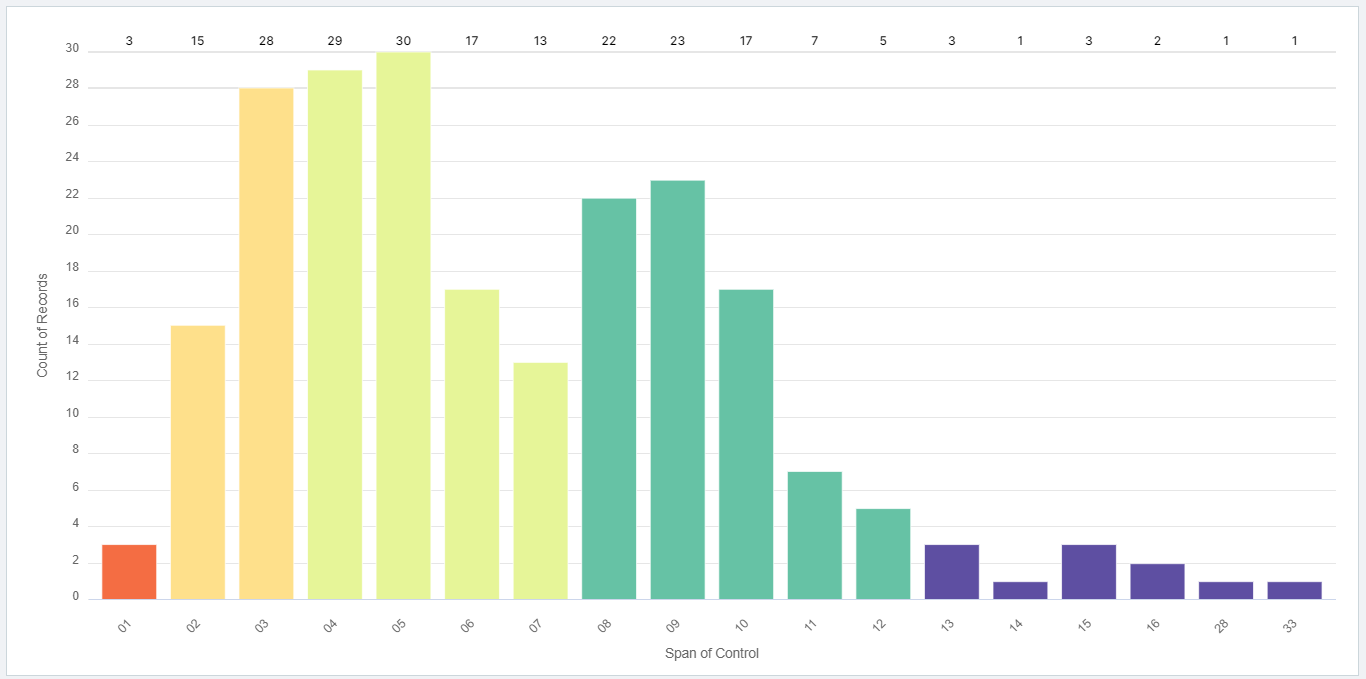

Visualize the number of managers by span of control category

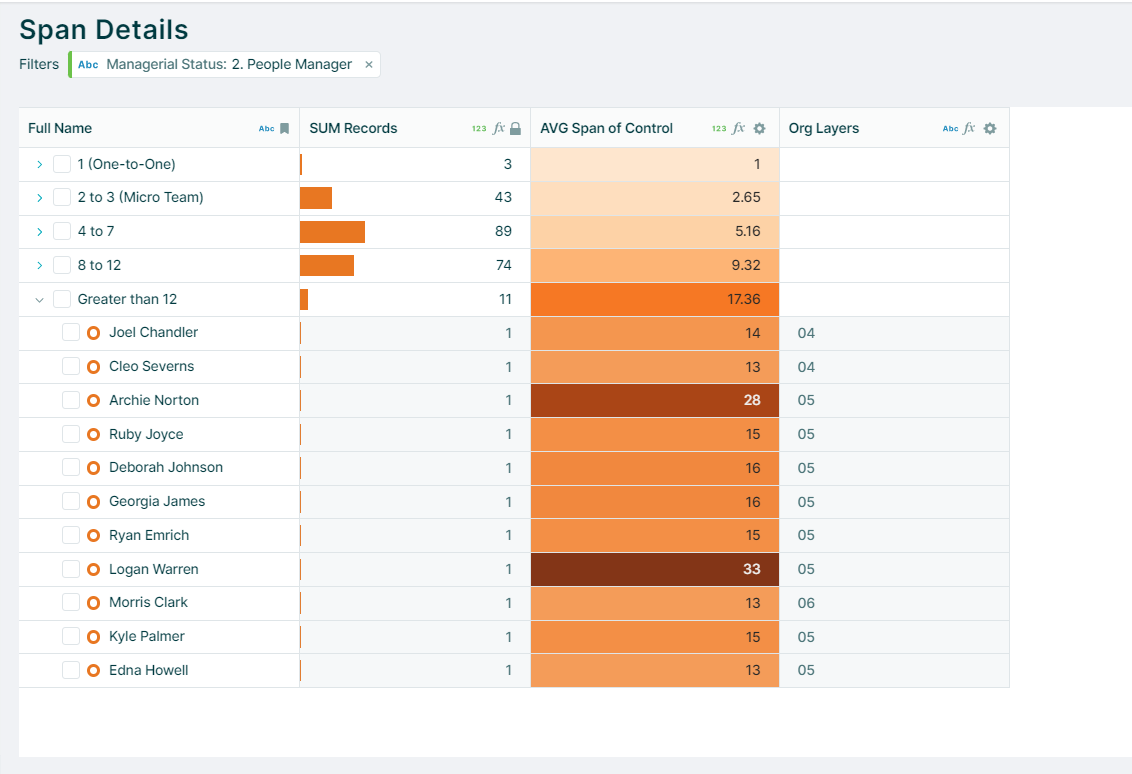

Understand the individual-level detail
How to access and configure the pack

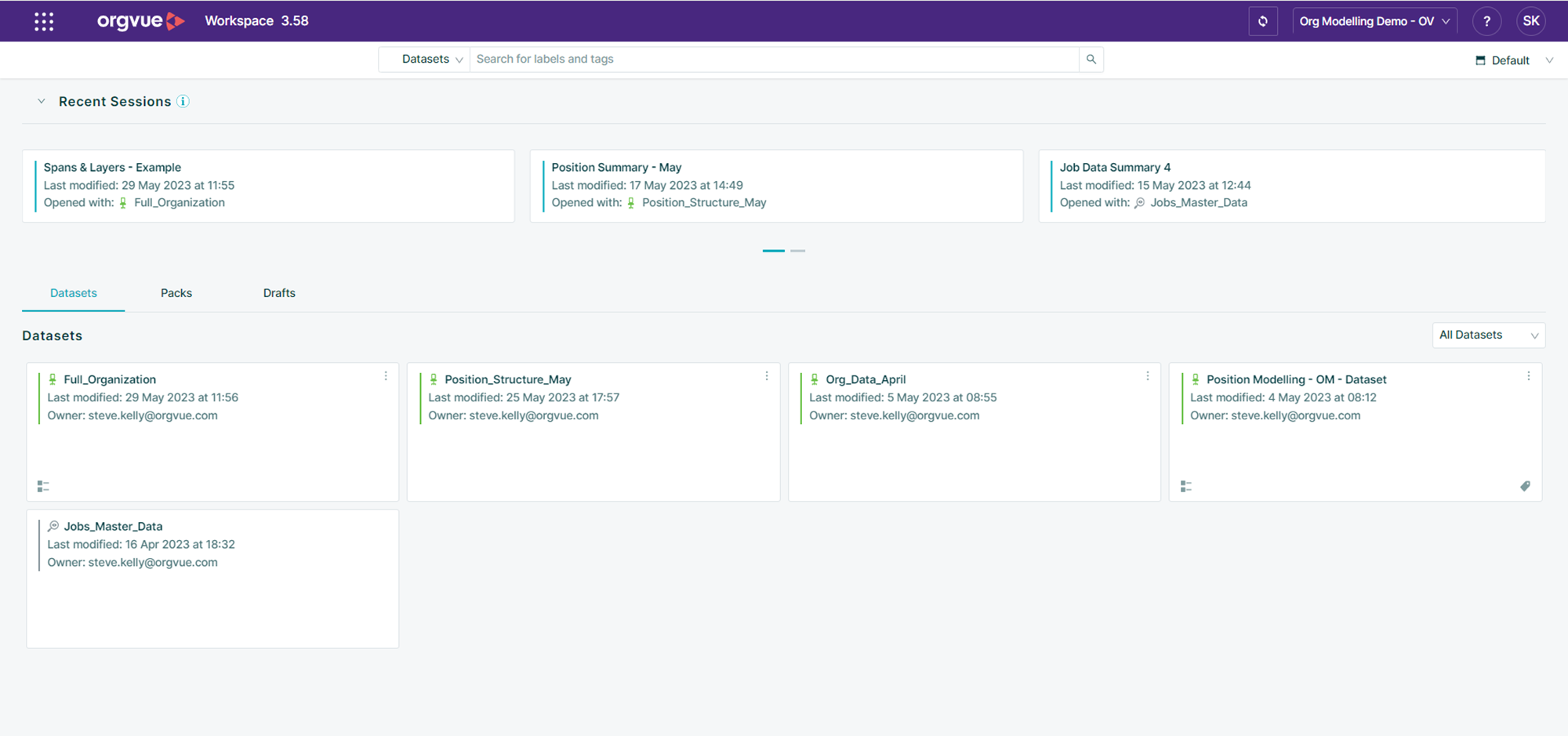

- In Workspace, select the dataset you want to use (if necessary, see Accessing Datasets and Packs).

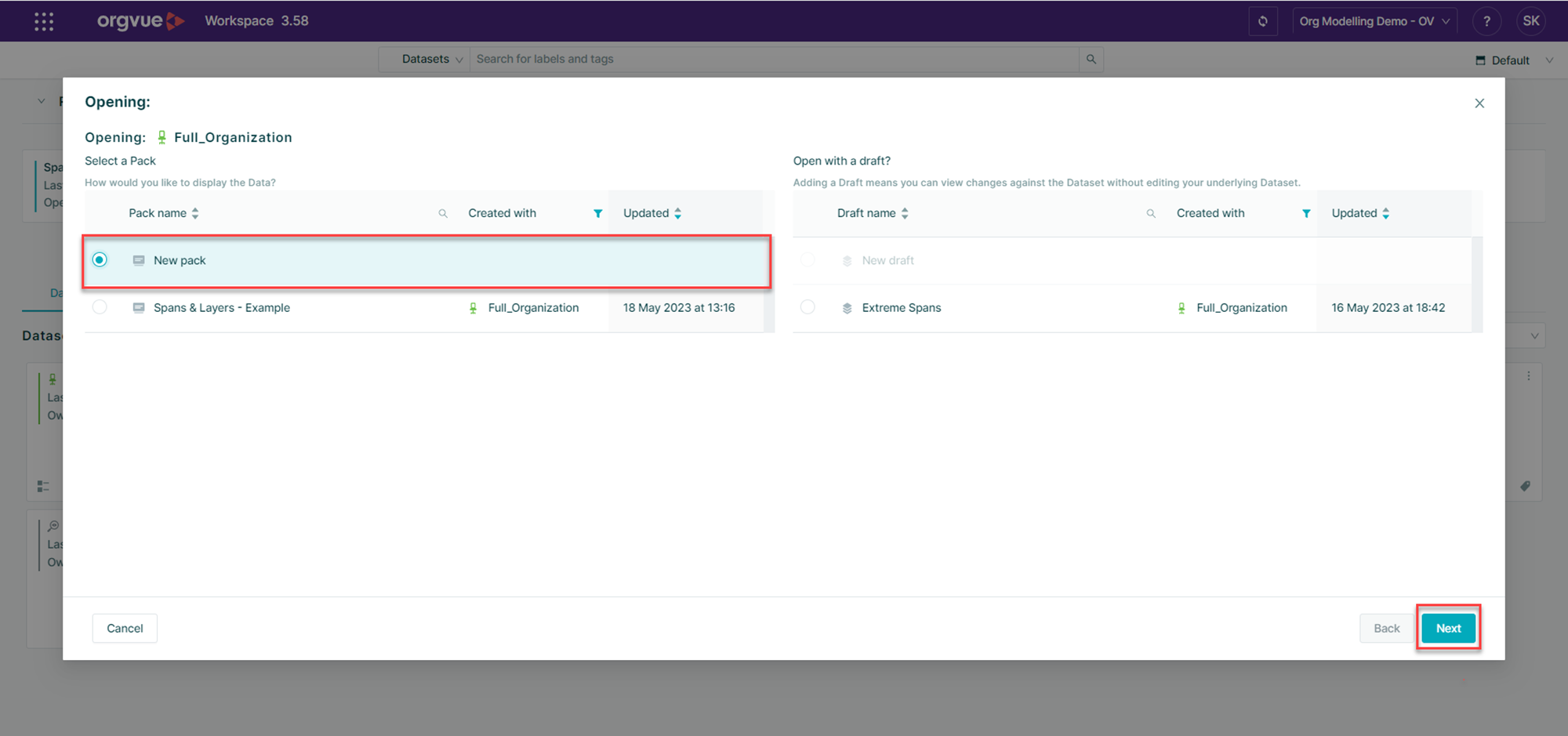

- Select ‘New pack’ then ‘Next’.

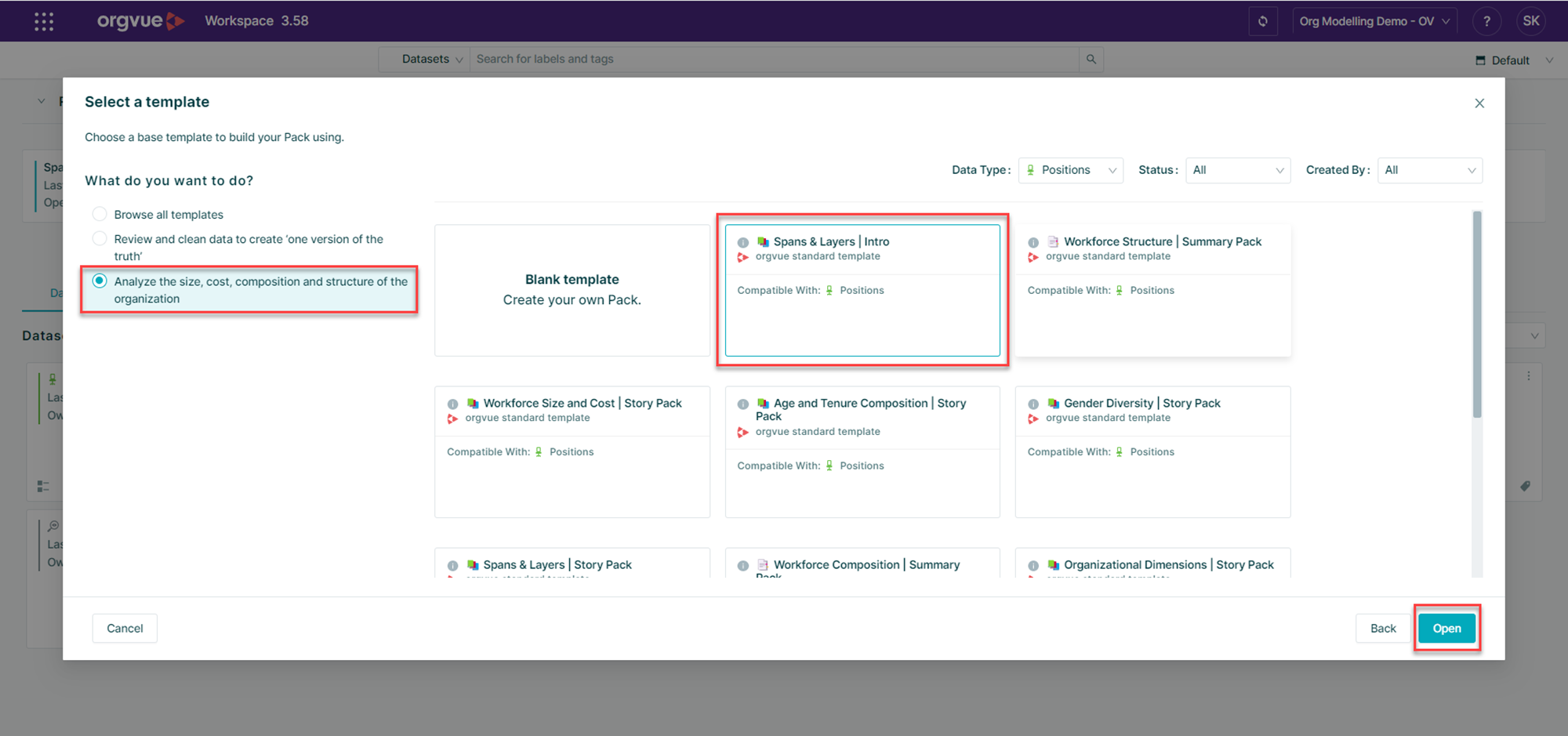

- Select ‘Analyze the size, cost, composition and structure of the organization’ under “What do you want to do?”. Select the ‘Spans & Layers | Intro’ icon. Select ‘Open’.
- When the pack opens you will be prompted to define two categories used in the pack. Customizing these categories is optional. You can skip this step and open the pack with default categories by selecting ‘OK’. You also have the option of completing or changing the Pack Configuration after you have opened the pack (see Configure template pack content).
- Span of Control categories group cases according to their span of control.
- Executive Level defines the lowest layer in the structure at which positions are considered to be ‘Executive’.

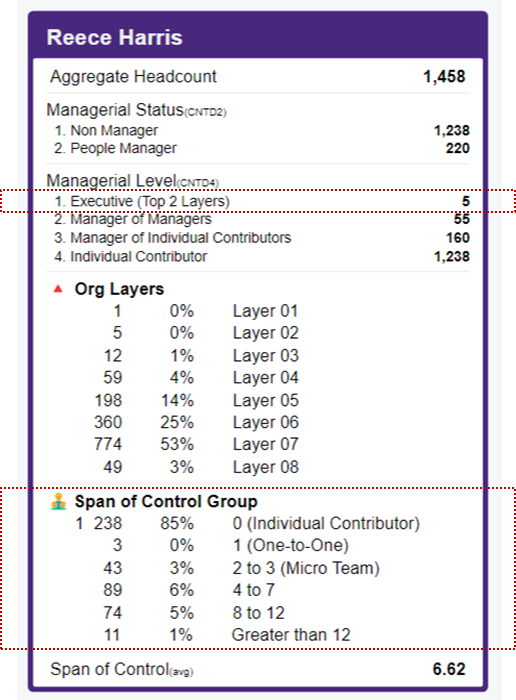

The example below shows these being reported in the pack.

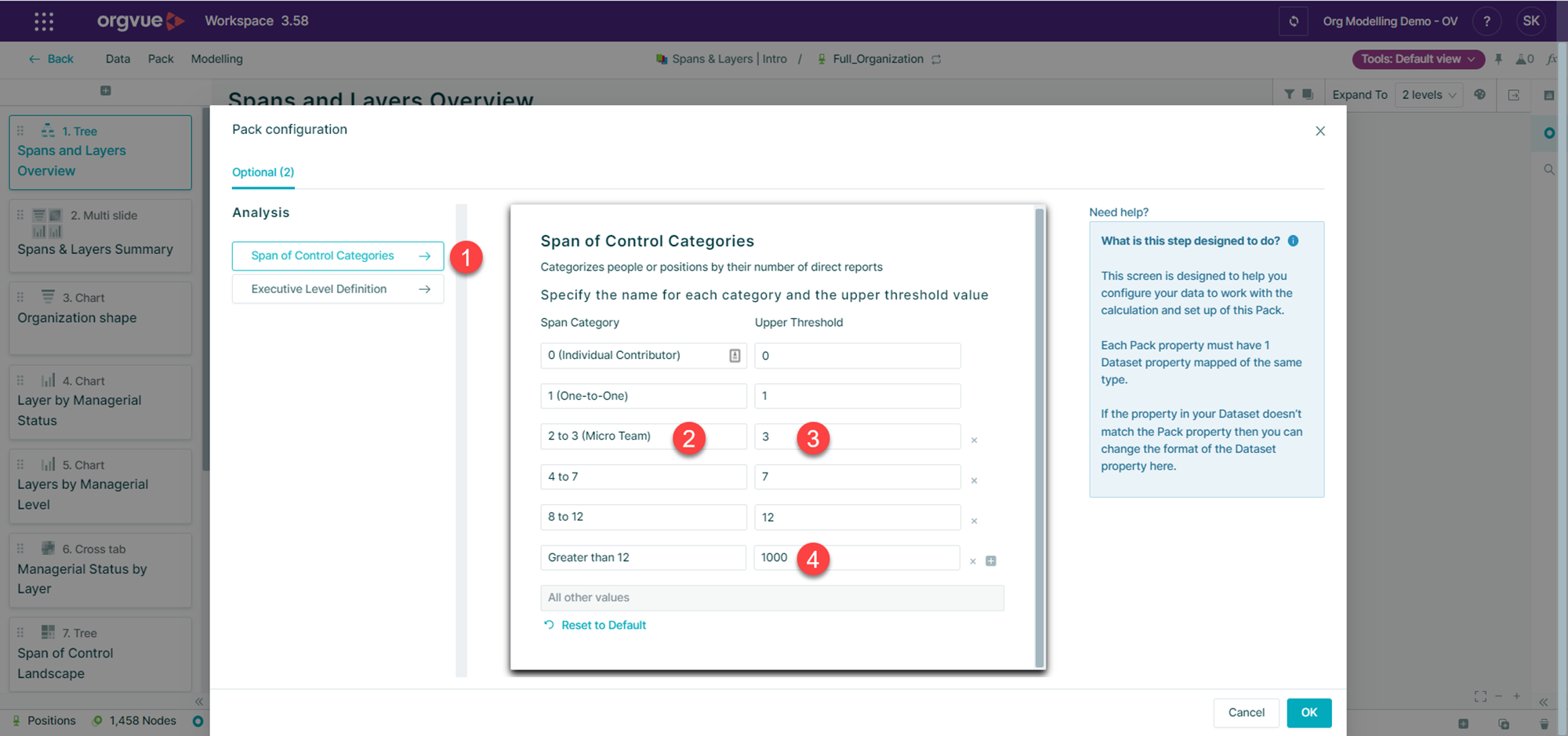

To customize Span of Control Categories:
- Select the arrow shown below.
- Specify your category labels in the fields under the 'Span Category' heading.
- Specify a value for each category in the fields under the 'Upper Threshold' heading. This value represents the highest span of control with which a manager will be included in the category).
- Specify an extreme value as the upper threshold for the final 'Greater than' category. This will ensure all cases are included.

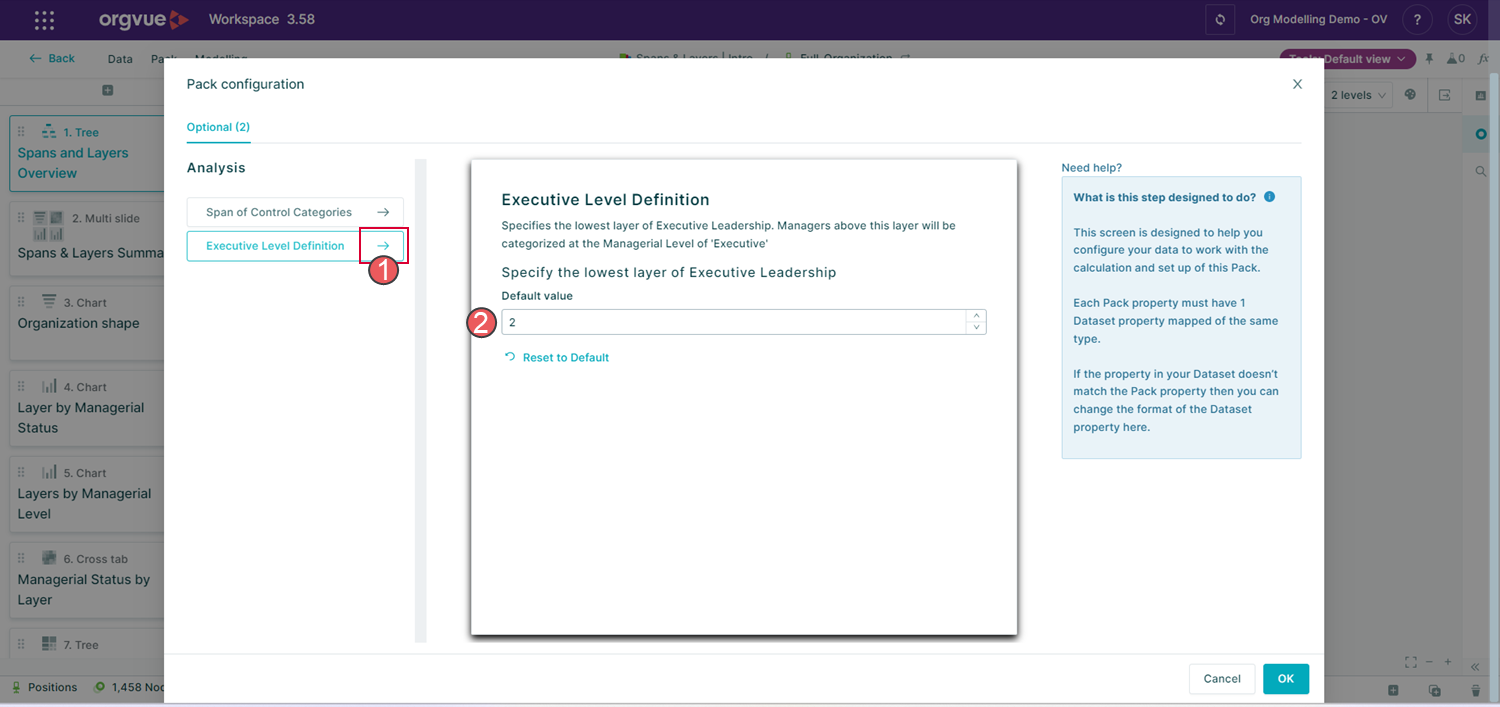

To customize the Executive Level:
- Select the arrow shown below.
- Specify the lowest layer in the structure at which positions are considered ‘executive’
- Select 'OK' to open the pack.
