Group Worksheet rows to show measures for subgroups

This article explains how to add properties as worksheet rows to define subgroups and show measures for each subgroup category.

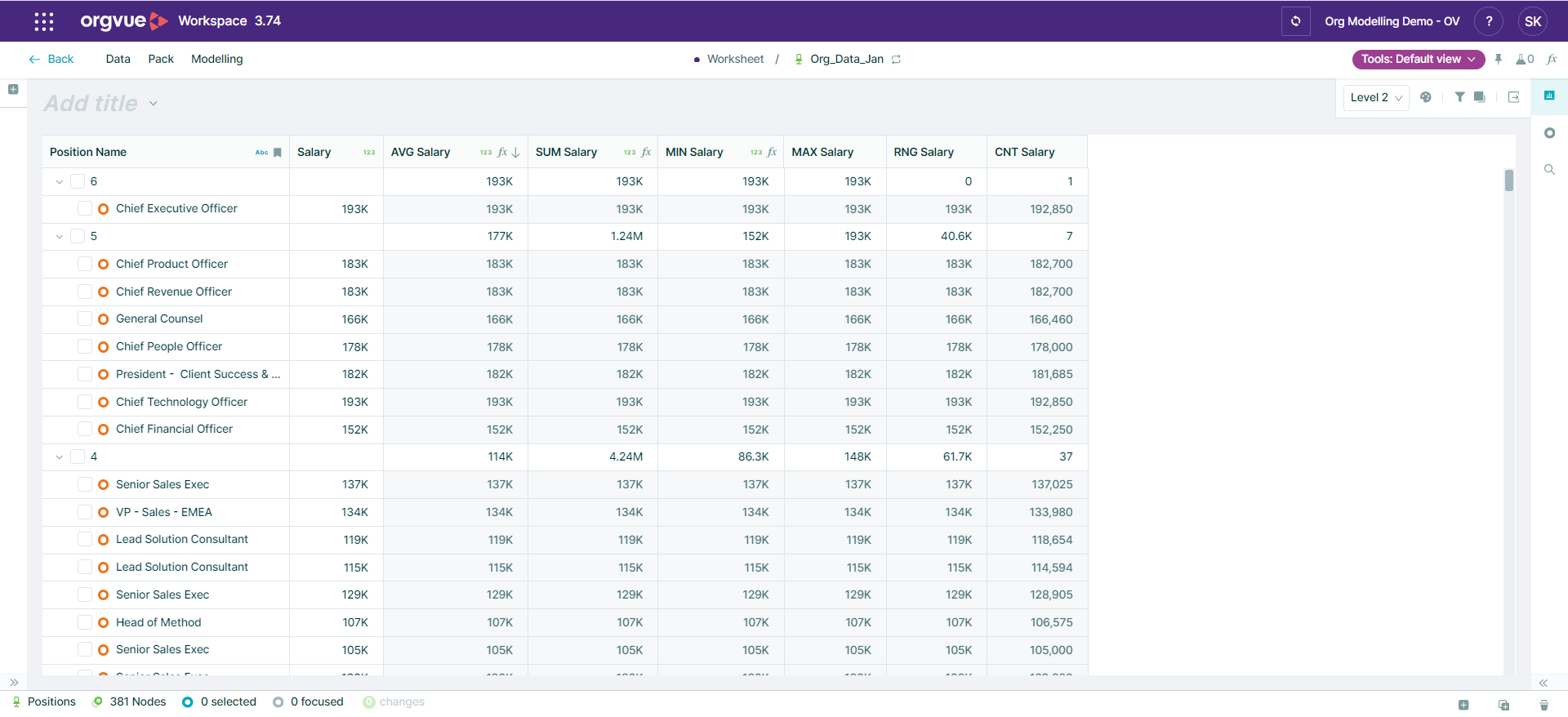

For brevity, the steps to Include ‘rolled-up’ measures in a Worksheet are not reproduced here.  The illustration below builds on the previous example by adding ‘Grade’ as a row property:  Positions (rows) are grouped by grade and measures are provided for each grade category.

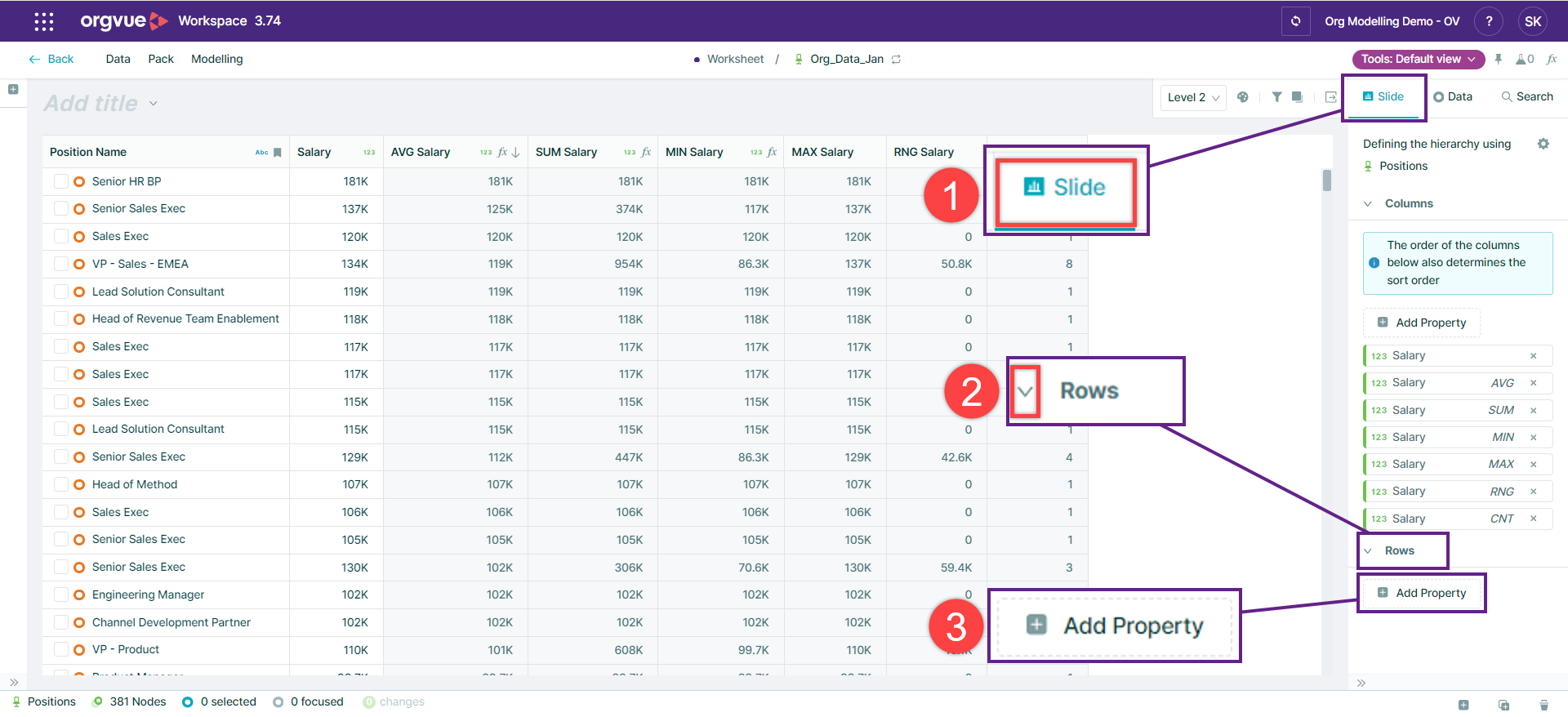

1. Select the ‘Slide’ Tab
2. Ensure the ‘Rows’ section is expanded
3. Select the ‘Add Property’ icon

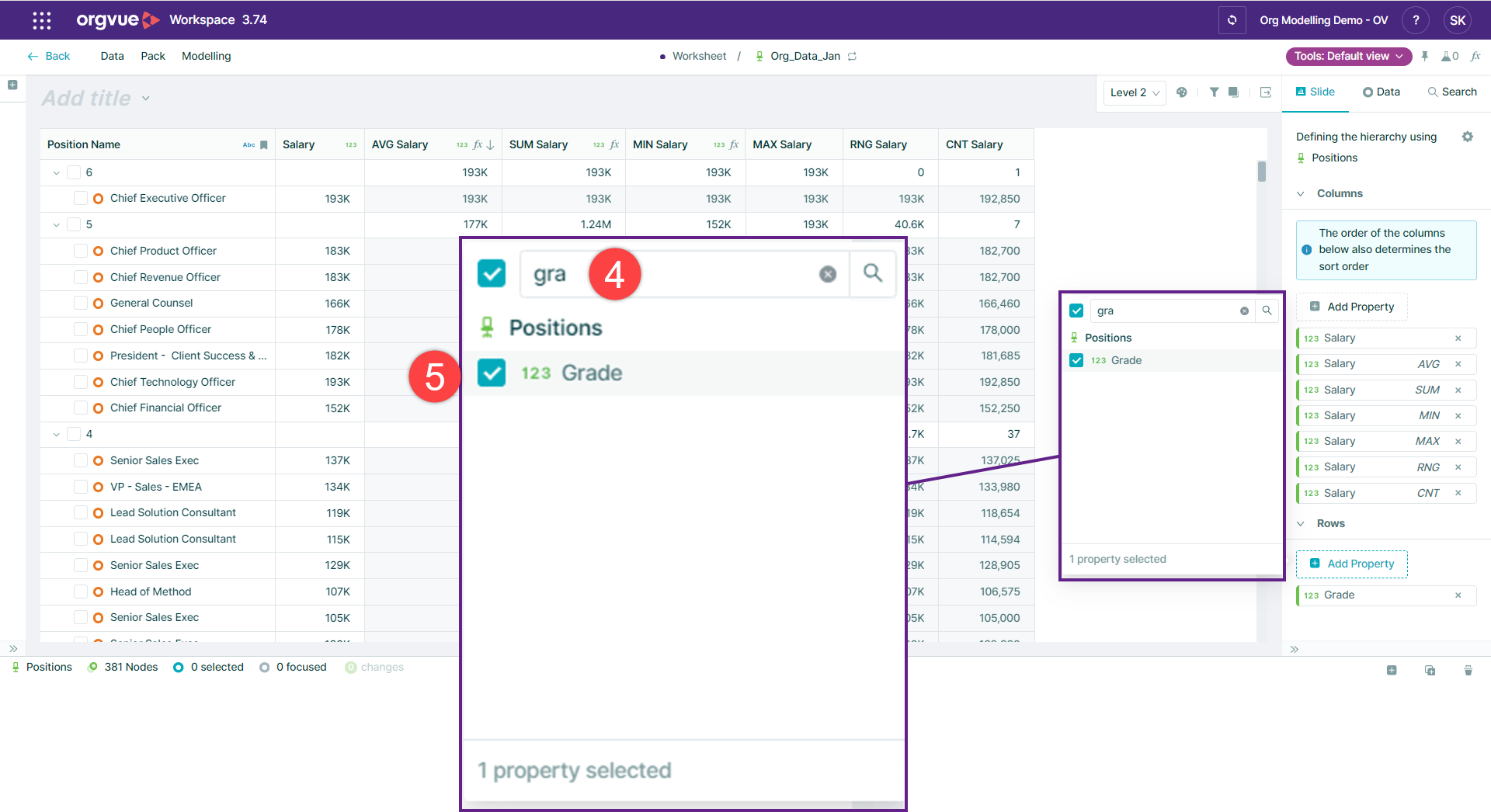

4. Search for the property to be used (‘Grade’ in this example).
5. Select the property with a checkmark.

Rows are included when the checkmark is selected.

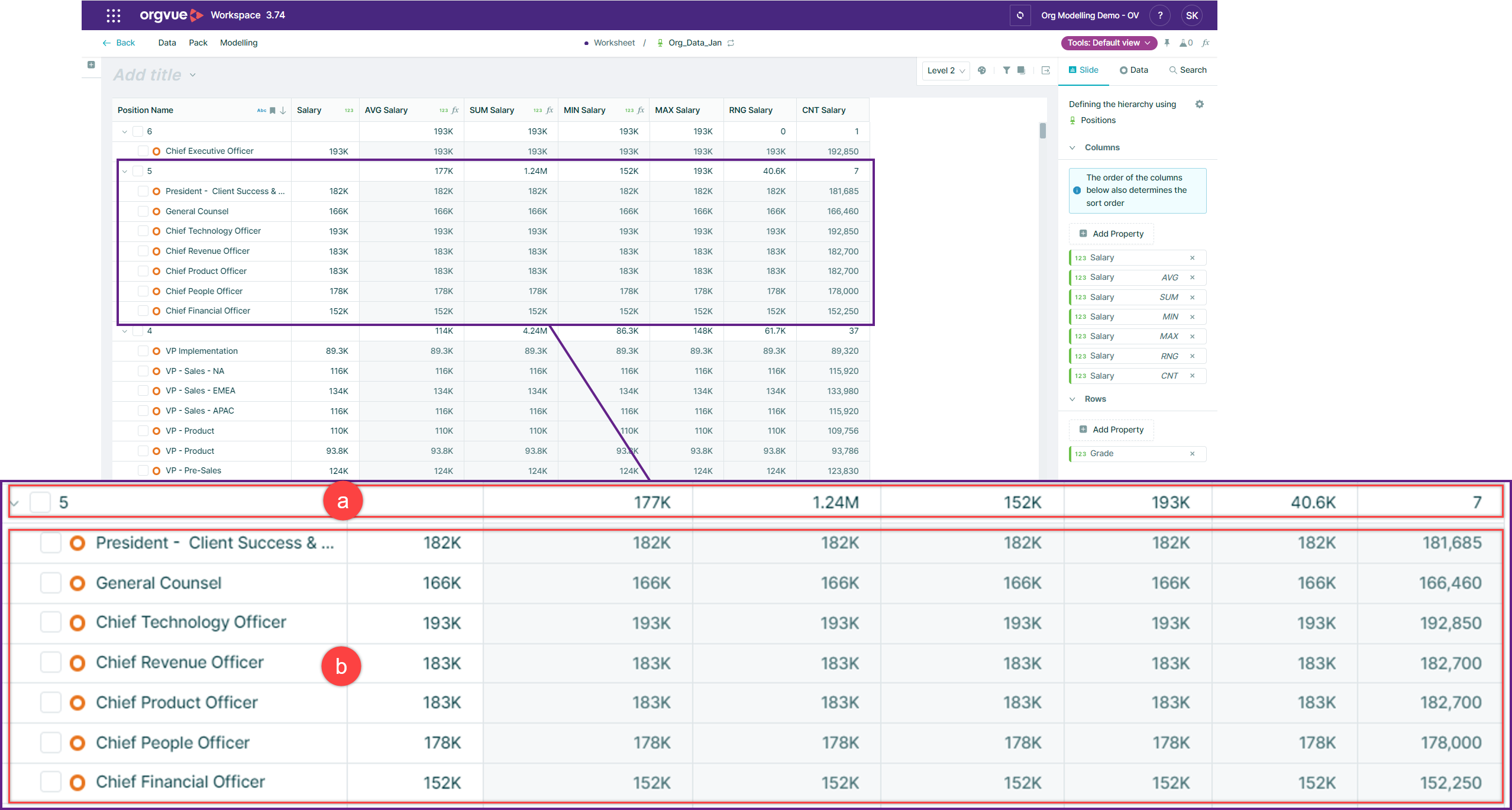

The example below shows:

1. Measures for each subgroup (Grade level 5 is highlighted); and
2. The values for each position in the subgroup (the seven positions at grade 5)..

Note:  More than one property can be added as a row.

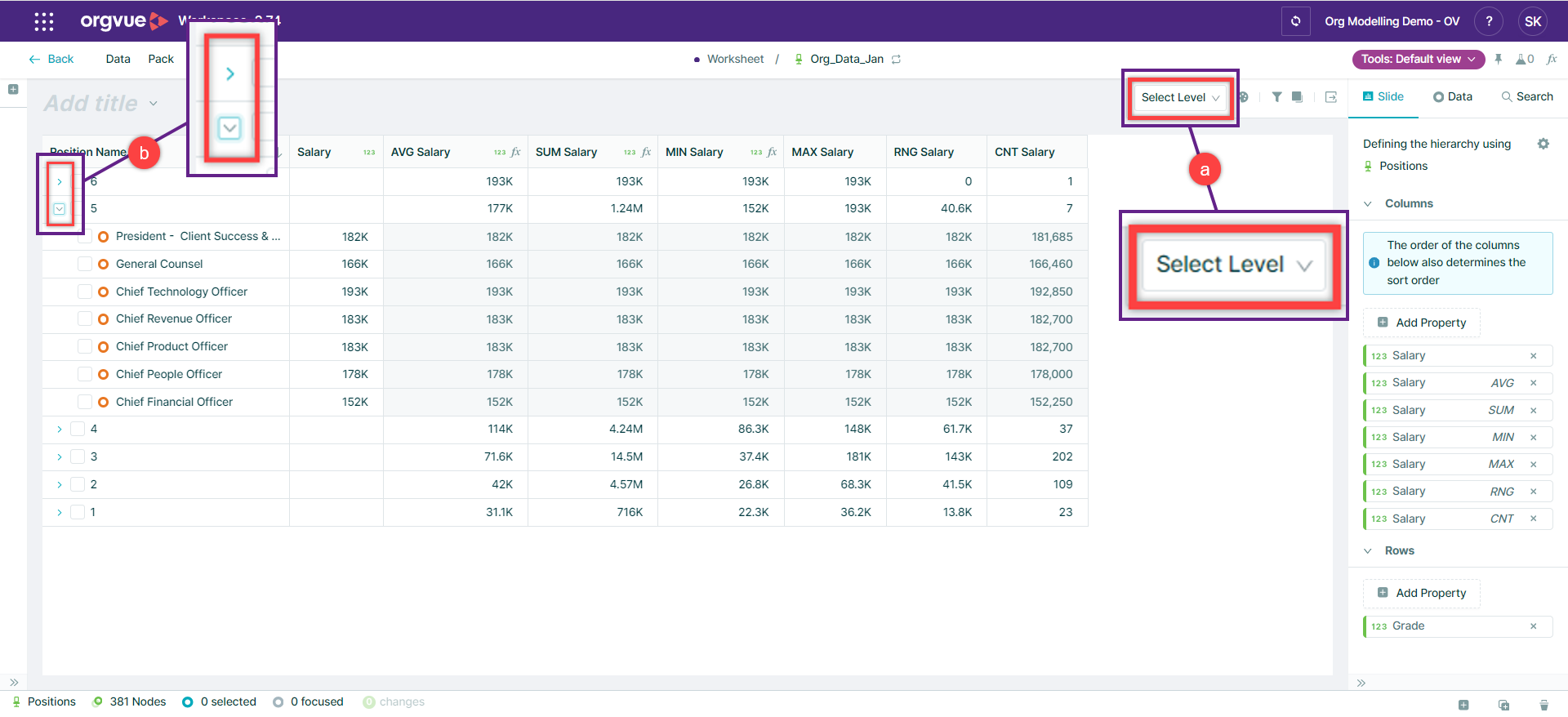

Tip:  Set the number of visible levels ('a' below) to 1 to compare subgroups, then expand/collapse rows ('b' below) to focus on the positions in each category.
