Compare teams in the organization structure

A key benefit of Orgvue is the ability to Drill-down through the organization structure and focus on selected reporting lines and teams.  You can also select different teams in the organization structure and view these side-by-side.

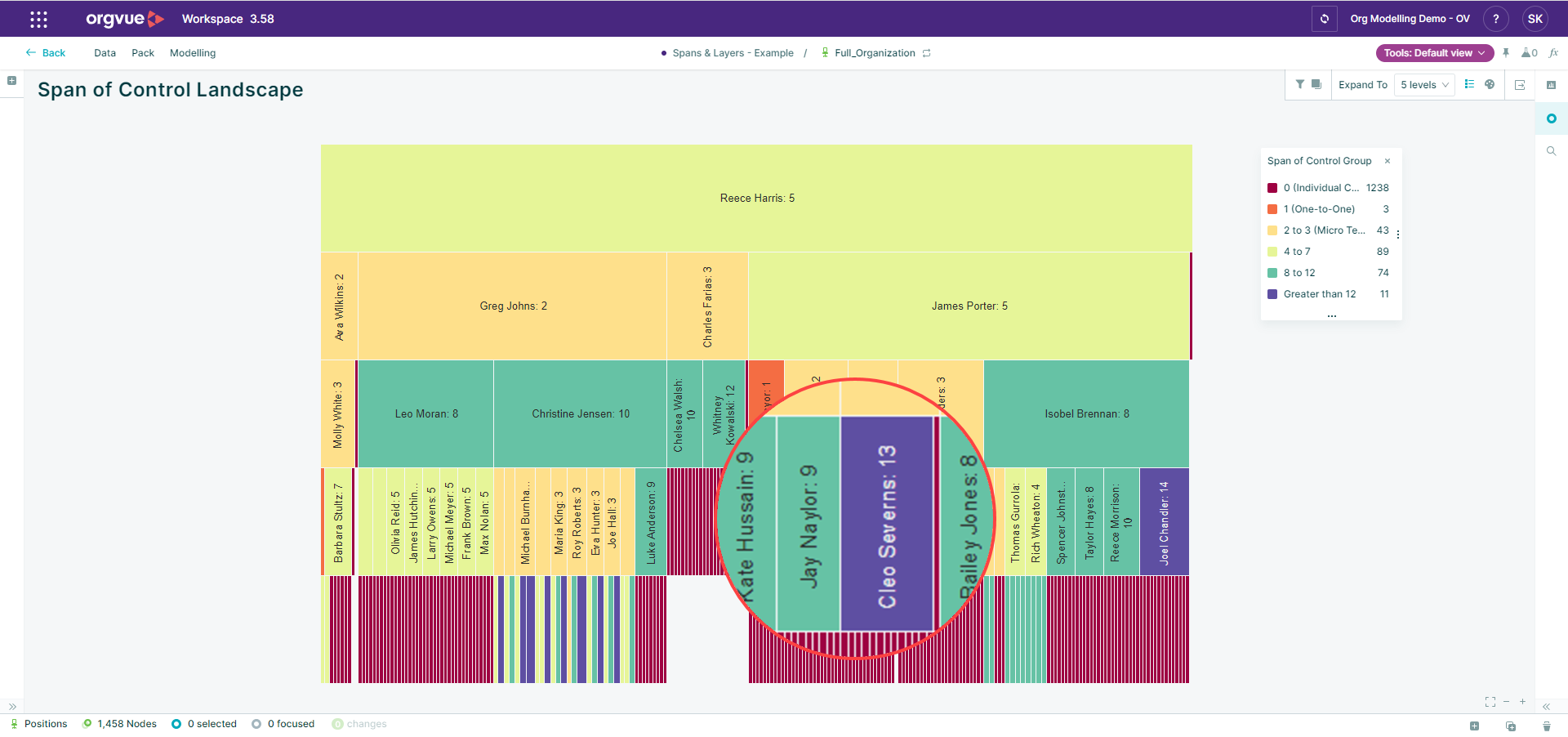

In the example below, we want to compare Jay and Cleo’s teams.

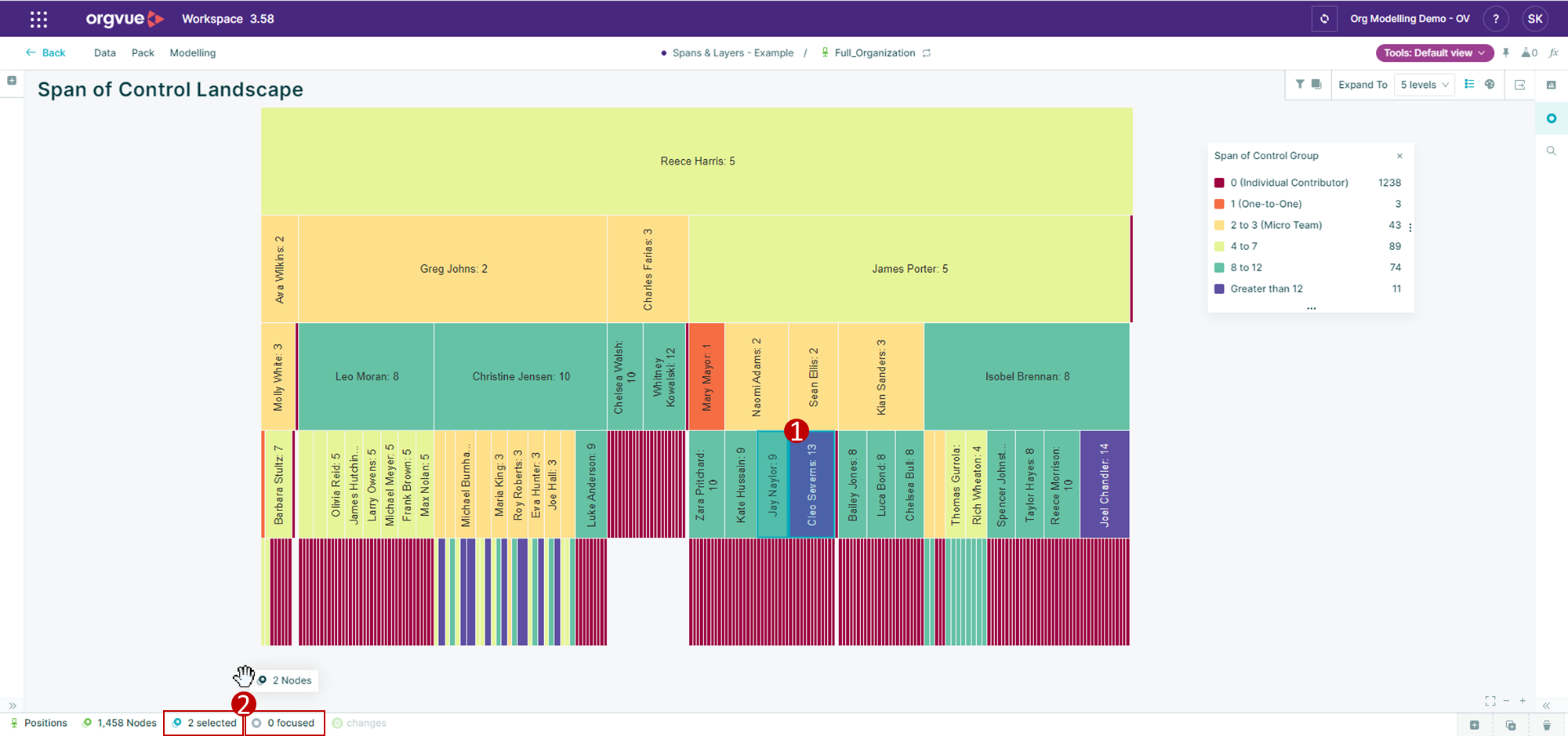

1. Select the positions in the structure you want to compare:   Left click holding down the shift key.  The number of positions you have selected will be shown in the 'selected' icon on the information bar.  the bottom of the canvas.
2. Drag the ‘selected’ icon onto the ‘focused’ icon.

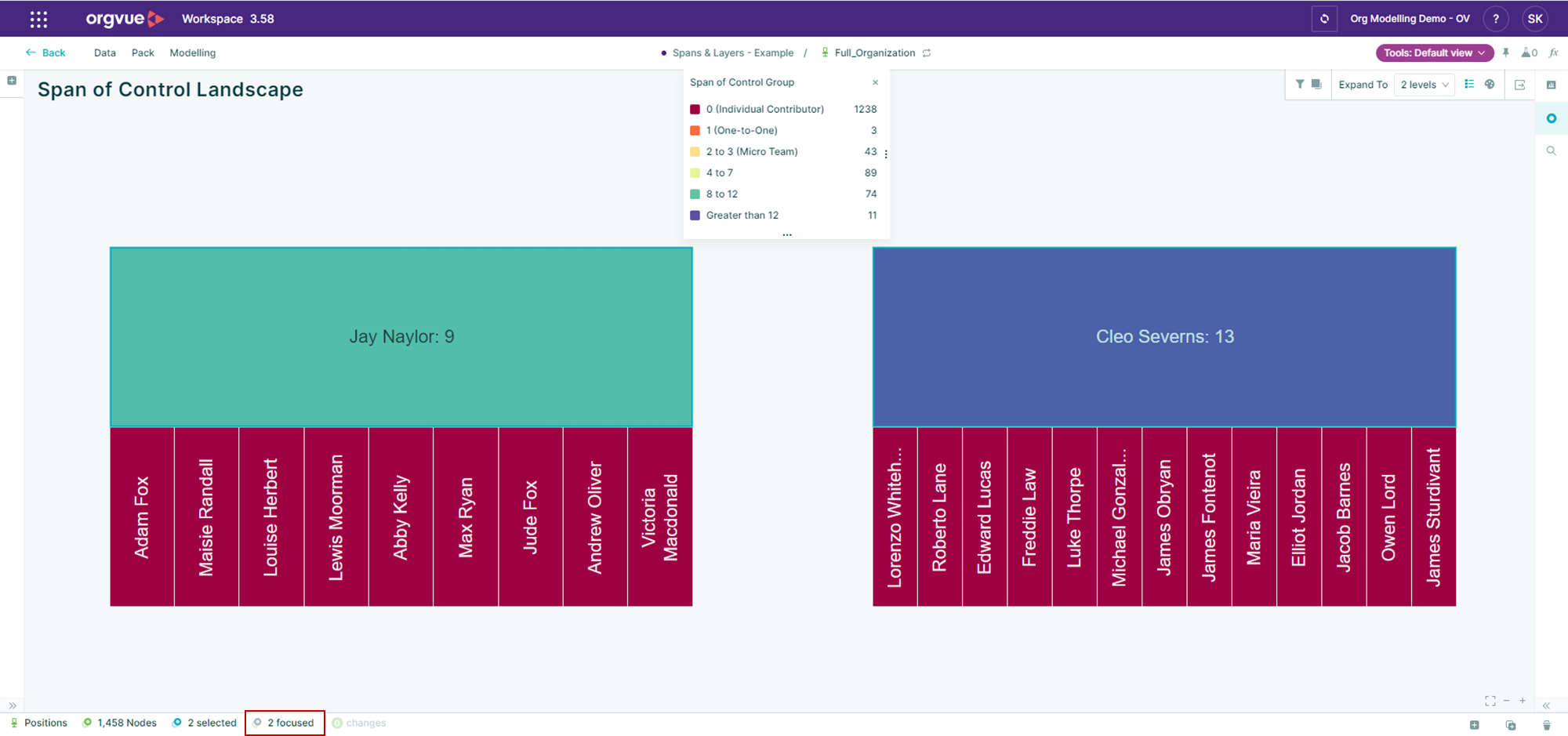

• Your selected teams are now used to set the Focus and are shown side-by-side.

• Clear the focus by selecting ‘X’ in the ‘focused’ icon at the bottom of the page.
