Populating property values with Expressions

This article introduces how expressions – similar to formulae in Excel – can be used to populate property values.

A separate article provides Code snippets for common Expressions.

Common requirements for expressions include:

• Generating new properties from existing properties, e.g.:
  • Combining “first name” and “family name” to create “full name”
  • Adding individual compensation components to calculate total compensation
  • Projecting “future compensation” based on “current compensation”
• Maintaining up-to-date values, e.g.:
  • Calculating "employee age" from "date of birth"
  • Calculating “tenure” from “start date”
• Specifying default values for new positions, e.g.:
  • Assigning an FTE value of 1 when a new position is added
• Flagging or categorizing nodes according to logic, e.g.:
  • Categorizing positions as “below target”, “on-target”, “above target”  based on values of a given property

Note: Orgvue’s template packs for organizational analysis, and the Organization Modelling Guided Experience provide pre-built, configurable expressions. These solutions are recommended starting points for organizational analysis and modelling.

Should my expression be saved as a Pack Property or a Dataset Property?

Expressions can be saved as a Pack Property or as a Dataset Property.

• Save your expression as a Dataset Property when it is needed across multiple packs
  For example ‘tenure group’ might be used to categorise employees consistently across multiple types of analysis using different packs.

• Save your expression as a Pack Property when it is needed in only a single pack which is used with multiple datasets
  For example, a property which helps identify data errors which is only ever used in a dedicated Data Quality Review Pack, and used with multiple datasets.

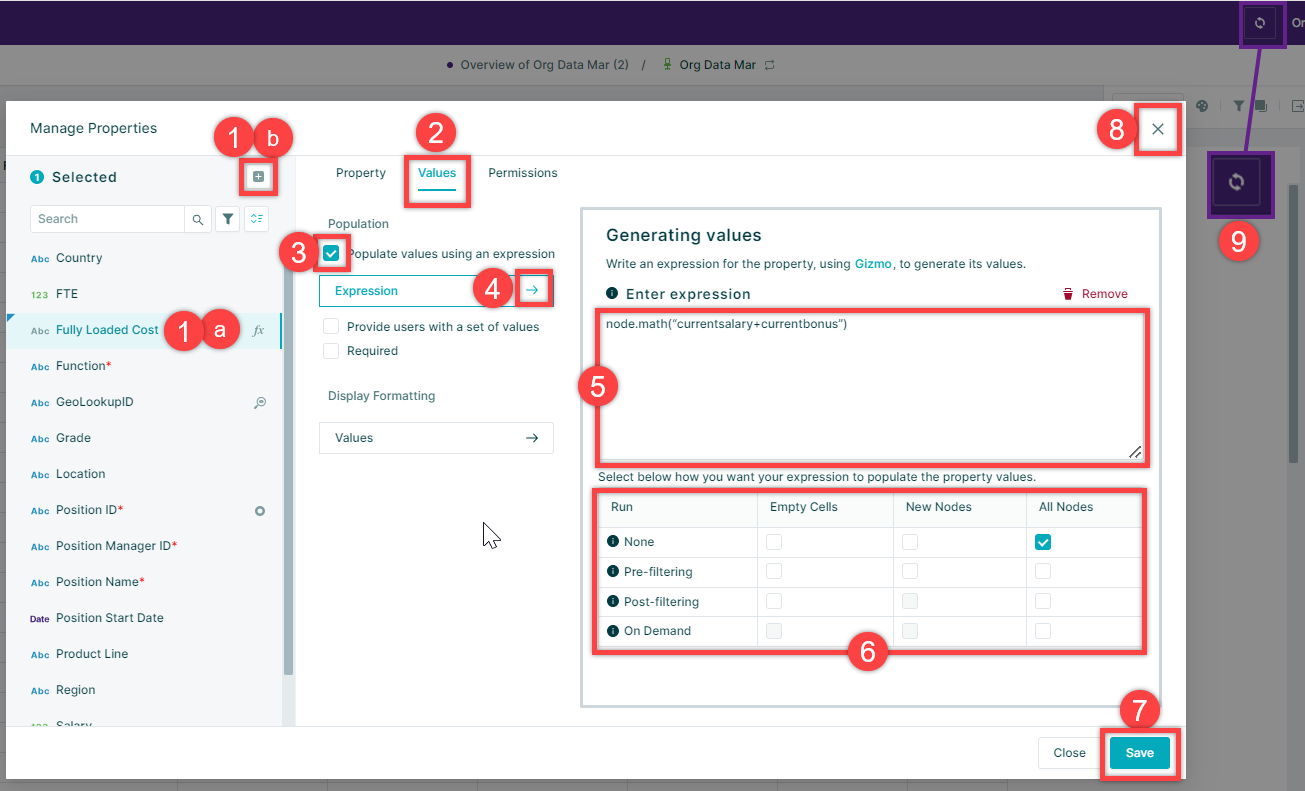

How to save an expression as a Dataset Property

TIP:  Run your expression in the Gizmo Editor to check it works as intended.  (See steps 1-4 in the section below “How to save an expression as a Pack property”).

• Open Manage Properties from either Workspace or Settings

1. a) Select the property to be populated by the expression; or
   b) Add a new property to be populated by the expression
2. Select the ‘Values’ tab
3. Select ‘Populate values using an expression’
4. Select the arrow to expand the ‘Expression’ option
5. Enter the expression (see Code snippets for common Expressions)
6. Select how the expression is to be run (see below for an explanation of the options)
7. Select ‘Save’
8. Close ‘Manage Properties’
9. Reload Orgvue

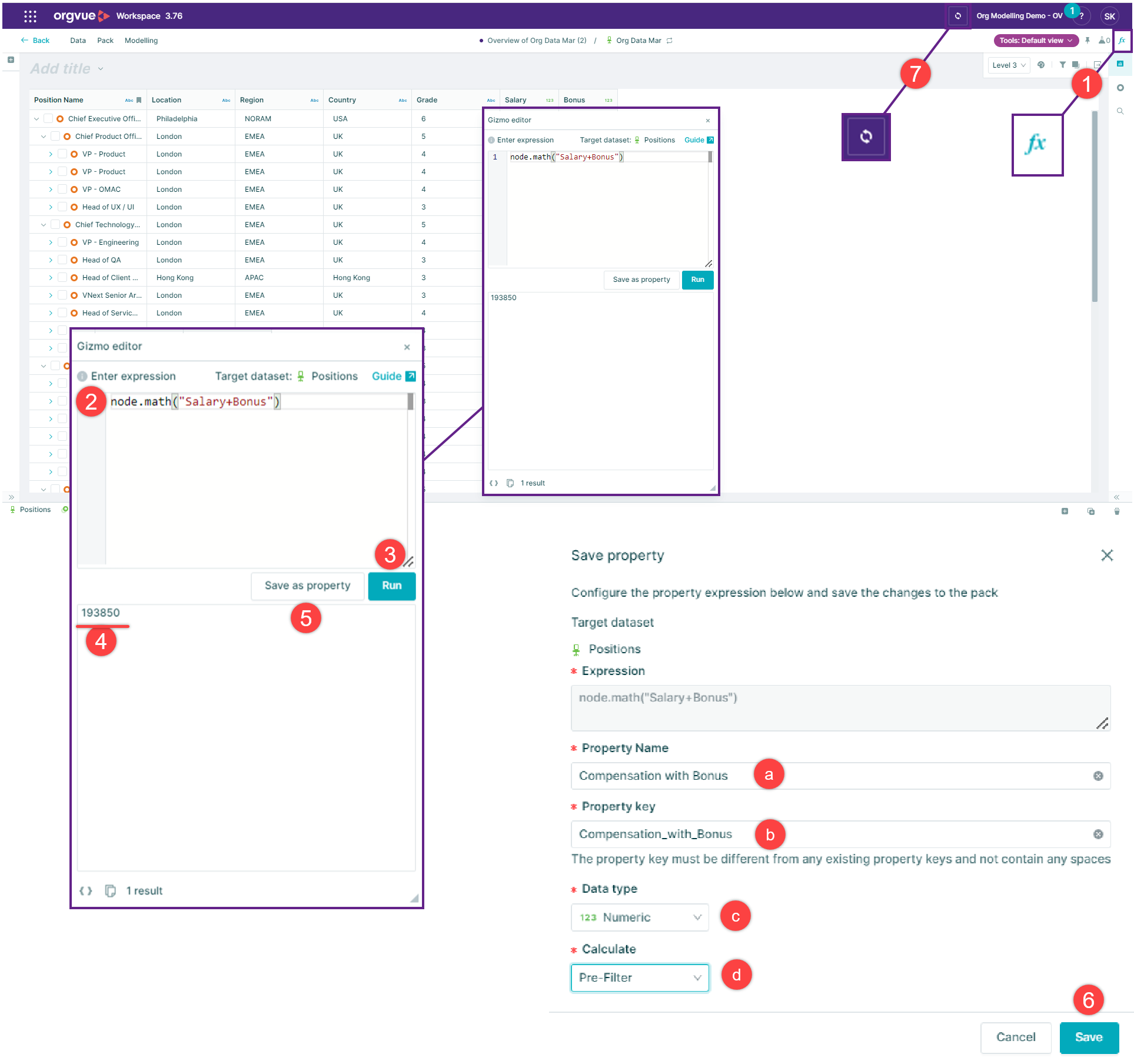

How to save an expression as a Pack Property

1. Select ‘Gizmo editor’
2. Enter the expression (see Code Snippets for Common Expressions for)
3. Select Run to preview the result of the expression
4. Preview the output of the expression (The value will be returned for the top node in the hierarchy (if no node has been selected), or for a selected node
5. Select ‘Save as property’
   1. Enter a display name for the property
   2. Enter a property key
   3. Select the appropriate property type (this will be auto detected)
   4. Select how the expression is to be run (see below for an explanation of the options)
6. Select ‘Save’
7. Reload Orgvue

How and when should my Expression be run?

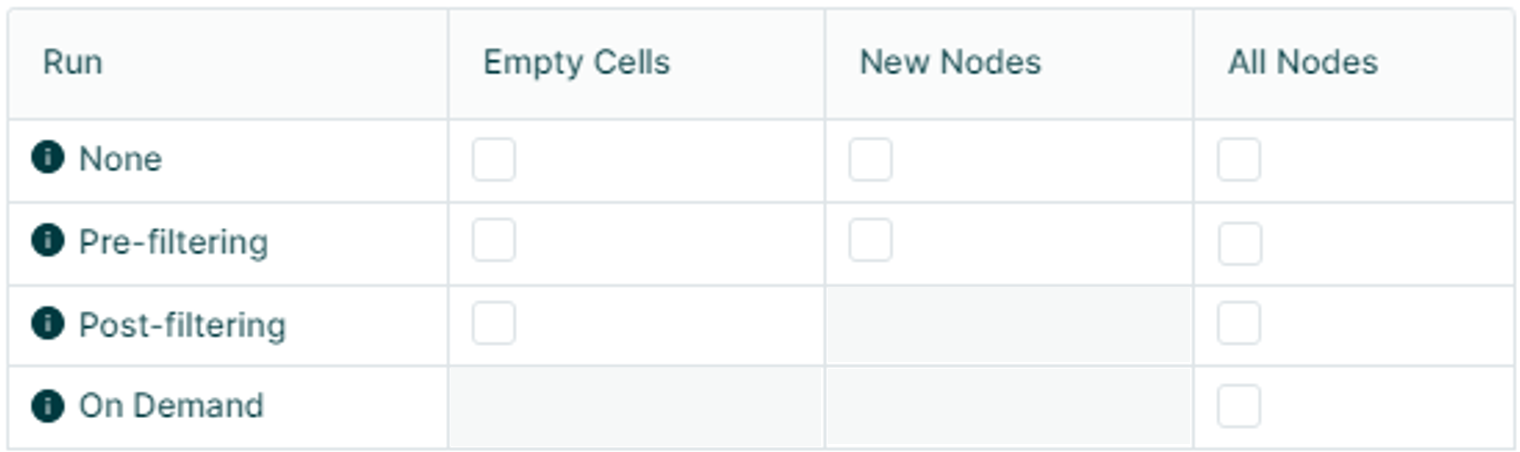

When an expression is applied, you can specify how and when it is run:


The effects of each these selections is summarized below.  Additional detail is provided in the Orgvue User Guide Property Manager · orgvue settings user guide


• Empty cells
  • The expression is only applied to populate cells which have no pre-existing value.
  • The value returned by expression can be over-written by users.
  • Example use:  Applying the value “No absence” in a property recording “Absence reason” for employees who have no recorded absence instances.
• New Nodes
  • The expression is only applied to populate cells when a node is created.
  • The value returned by the expression can be over-written by users.
  • Example use:  Assigning a default FTE value of 1 when a position is added.
• All Nodes
  • The expression applied to all nodes regardless of whether a cell is empty or has pre-existing value.
  • The value returned by the expression cannot be over-written by users.
  • Example use:  If a performance assessment rating results in a specific outcome which needs to be recorded and protected.
• Pre-Filter
  • Values are generated before data is filtered or paged and do not change after filters or pages take effect.
  • Example use:  Calculating total compensation by adding compensation components and paging to compare organizational subgroups.
• Post-Filter
  • Values are generated after data is filtered and/ or paged.  Values are based on nodes included in subgroups defined by filtering and paging.
  • Values returned by the expression are dynamic:  they change to respect filters or paging being applied.
  • Example use: Calculating aggregate team cost and seeing the ‘to-be’ cost of the organization with positions flagged for removal filtered-out.
• On-Demand
  • Values do not change until a user triggers the running of the expression.
  • This avoids performance loss through complex calculations running unnecessarily
  • Example use:   An expression used across linked datasets to perform validation checks during a talent selection process.
